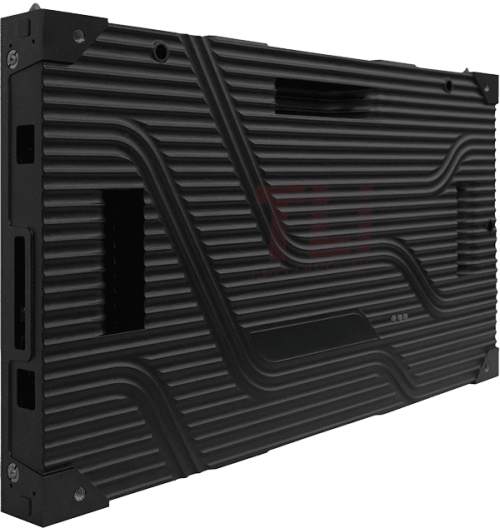

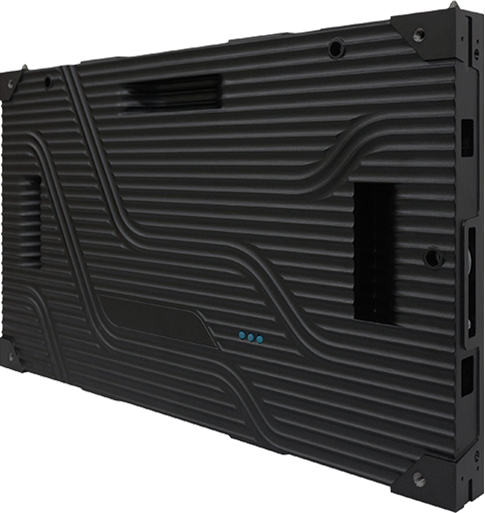

TLI LED TFP600 Series HD LED Display has 16:9 golden ratio design, single cabinet 16:9 resolution, Die cast aluminum cabinet with 600×337.5mm size, seamless splicing makes the best viewing performance of indoor fine pixel pitch LED display screen.

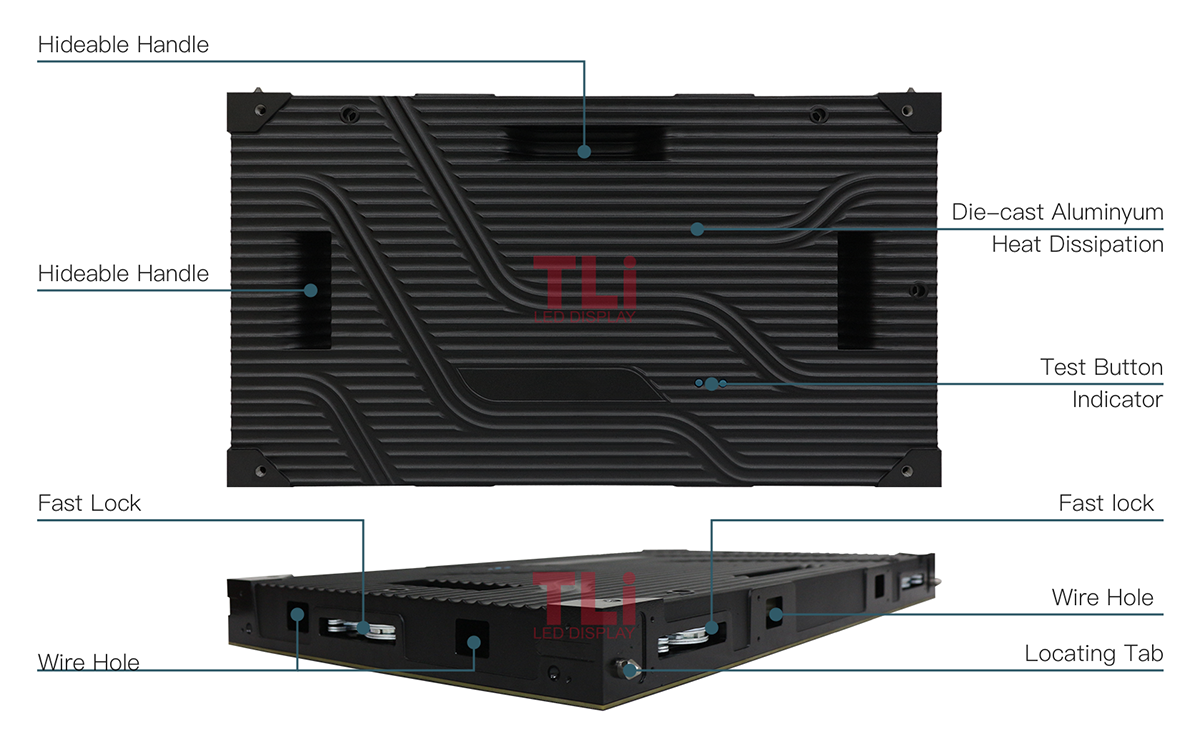

TLI LED 16:9 Series HD LED Video Wall design with perfect cabinet hide handles, fast locks, power and signal indicator and wire holes, Innovative structural design, 16:9 size body lines for better heat dissipation, all these for the extraordinary experience.

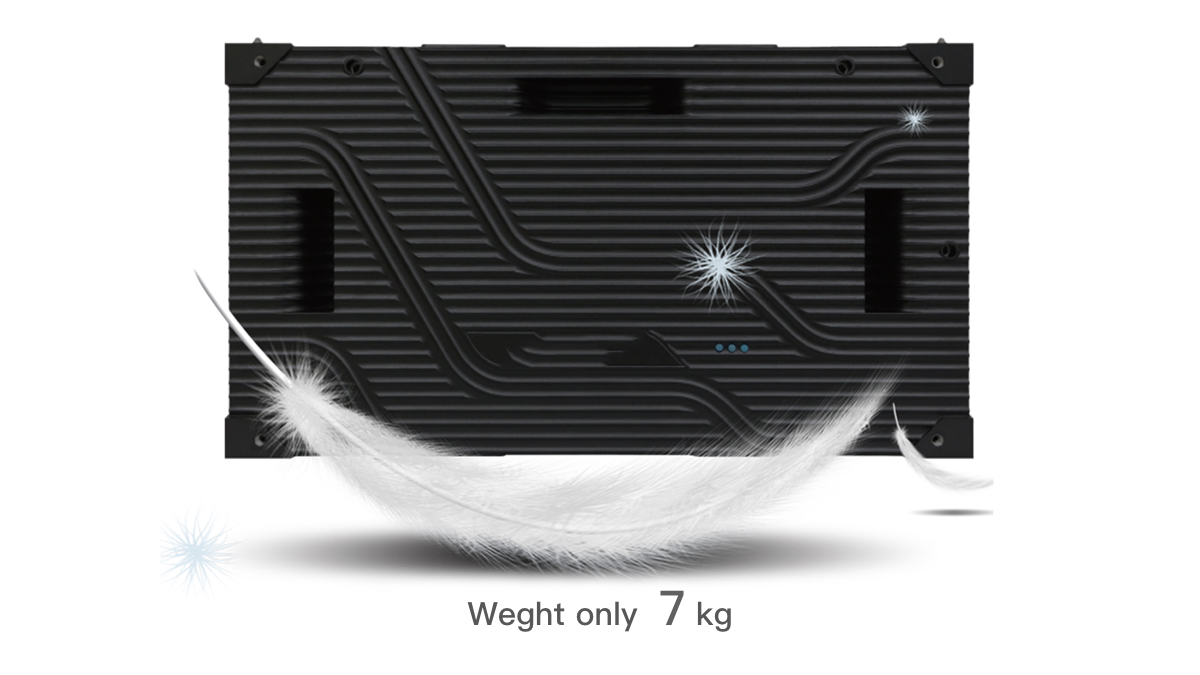

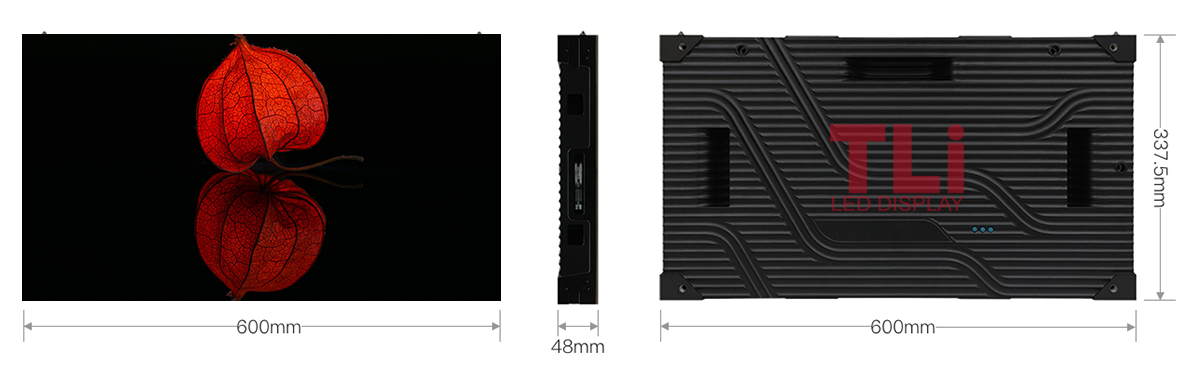

TFP600 16:9 LED display is portable and good stability with the weight only 7kg single cabinet, the cabinet thickness is only 48mm but strong enough, the cabinet size is 600×337.5mm, so it is easy to carry, transport and install, cost saving for labor and time.

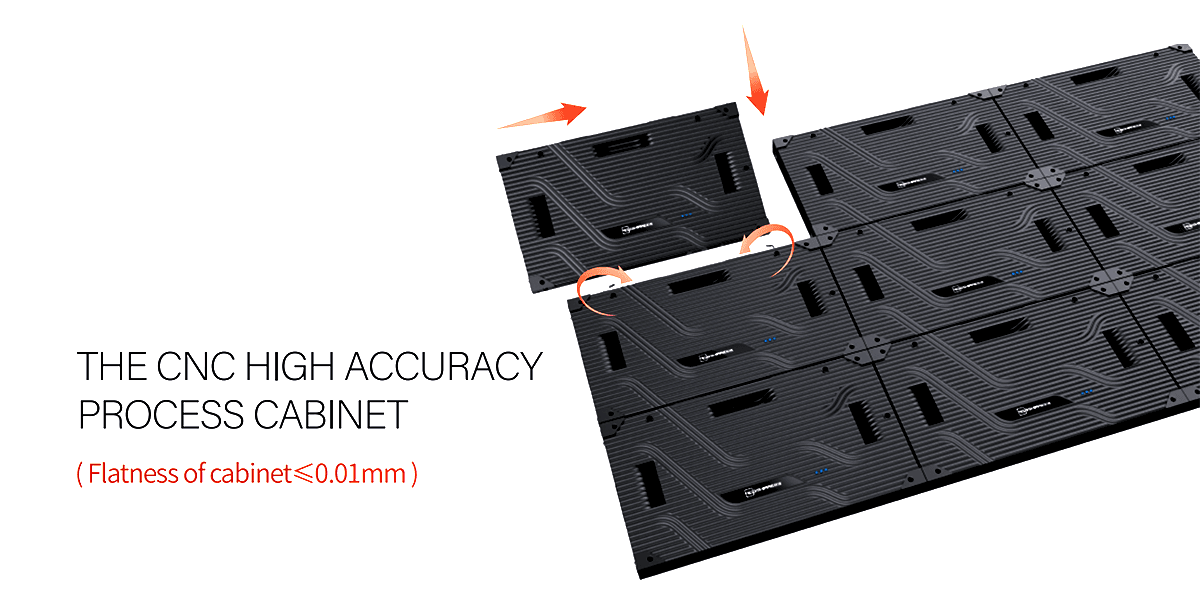

Our CNC High Accuracy process makes the high flatness of cabinet ≤0.01mm

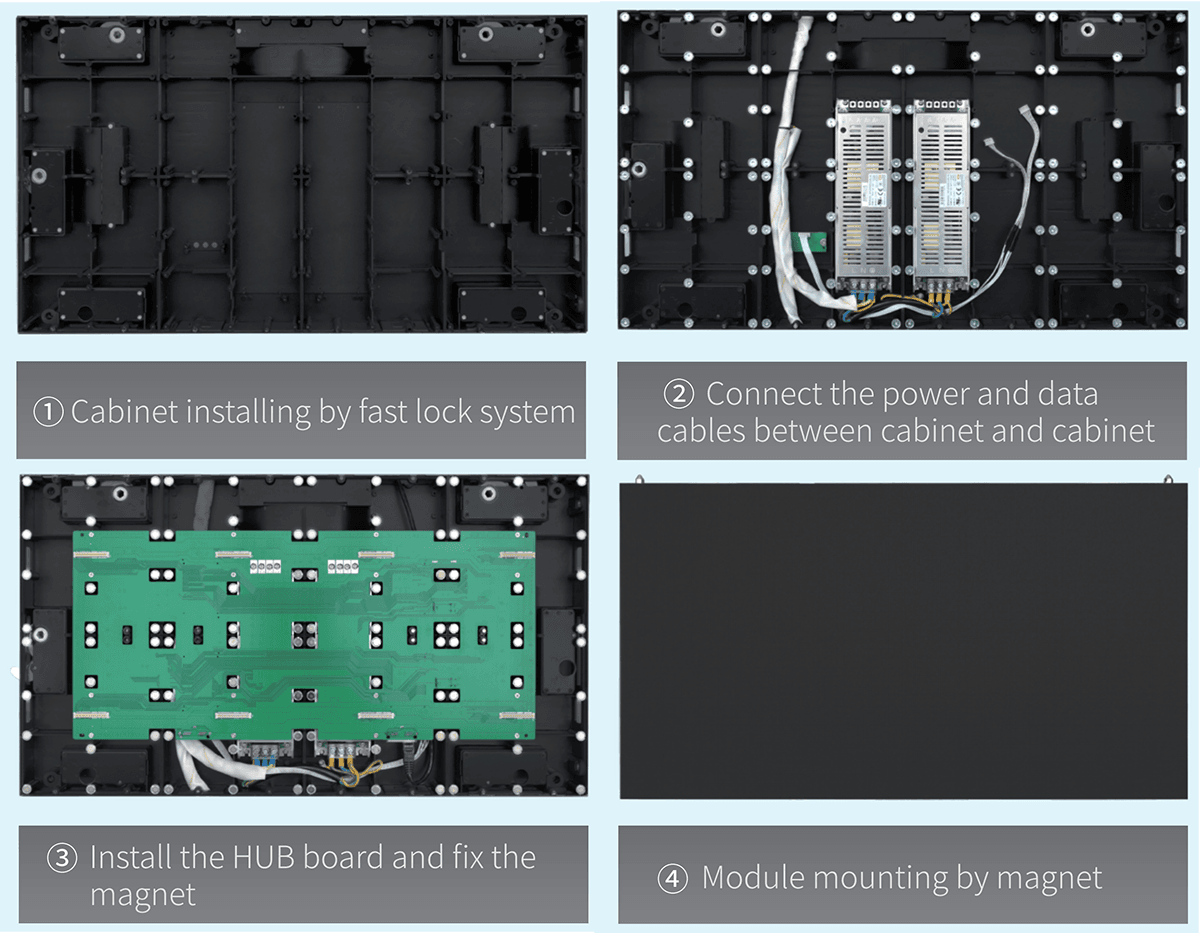

All parts front service is possible for installation and maintenance, the modules, power supplies, PCB control board.

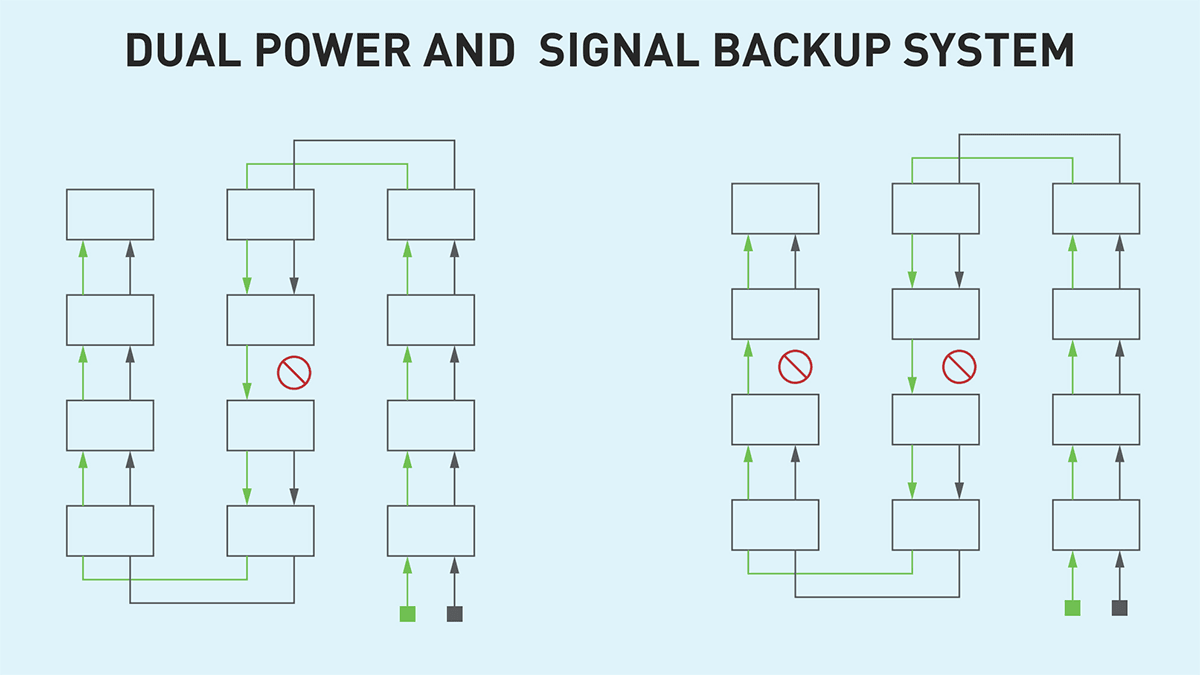

TFP600 Series Supporting dual control system, dual power supply backup settings, when unexpected situations happen, the system will automatically switch and ensure the image playing still smoothly.

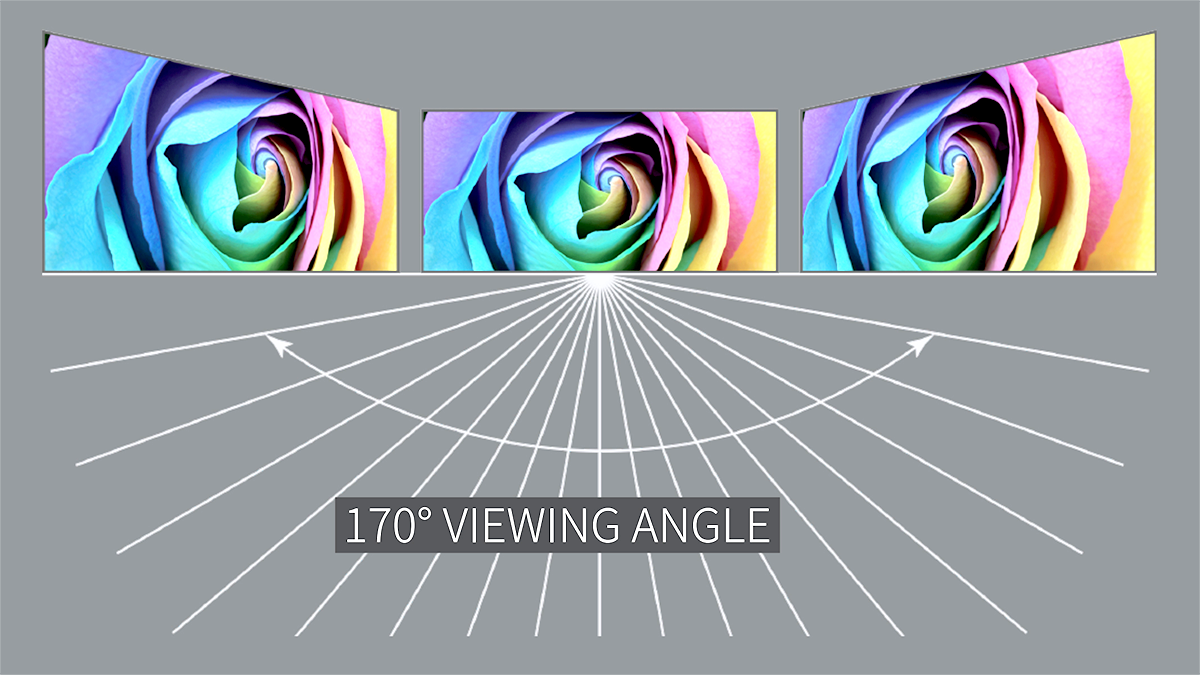

With up to viewing angle 170° horizontal, TFP600 series LED display give audience better visual experience.
With a cabinet ratio 16 : 9 easier to create better performance of 2K,4K, 8K and 16K LED video walls.
Have LED display projects? Send us message now, we will reply you in 24 hours with the best solution and price for your cases.
| Pixel Pitch | 1.25mm | 1.56mm | 1.875mm | 2.5mm |
| Pixel configuration | SMD2010/1010 | SMD1212/1010 | SMD1515/1010 | SMD1515 |
| Pixel Density (dots/m2) | 640000 | 409600 | 286225 | 160000 |
| Module resolution (W×H) | 120×135 | 96×108 | 160×90 | 60×135 |
| Module size （mm） | 150（W）×168.75（H） | 150（W）×168.75（H） | 300（W）×168.75（H） | 150（W）×337.5（H） |
| Module weight （kg） | 0.4 | 0.4 | 0.4 | 0.4 |
| Module of cabinet （W×H） | 4×2 | 4×2 | 2×2 | 4×1 |
| Cabinet resolution (W×H) | 480×270 | 384×216 | 320×180 | 240×135 |
| Cabinet size (mm) | 600（W）×337.5（H）×80（D） | 600（W）×337.5（H）×80（D） | 600（W）×337.5（H）×80（D） | 600（W）×337.5（H）×80（D） |
| Cabinet area (m2) | 0.2025 | 0.2025 | 0.2025 | 0.2025 |
| Cabinet weight (kg) | 7.8 | 7.8 | 7.8 | 7.8 |
| Maintenance mode | Front | Front | Front | Front |
| Cabinet raw material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| White Balance Brightness (nits) | ≥800（6500K） | ≥800（6500K） | ≥800（6500K） | ≥800（6500K） |
| Viewing Angle (H/V) | 170/170 | 170/170 | 170/170 | 170/170 |
| Contrast | 5000：1 | 5000：1 | 5000：1 | 5000：1 |
| Peak power consumption | 800 | 800 | 800 | 800 |
| Average power consumption | 250 | 250 | 250 | 250 |
| Drive mode | 1/27 | 1/27 | 1/30 | 1/27 |
| Grayscale level | 65536 | 65536 | 65536 | 65536 |
| Refresh rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
160×180 dots/module
150×168.75mm panel
600*337.5mm Indoor LED
120×270 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
96×180 dots/module
150×168.75mm panel
600*337.5mm Indoor LED
80×180 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
76×162 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
60×135 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
60×135 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
40×90 dots/module
150×337.5mm panel
600*337.5mm Indoor LED
