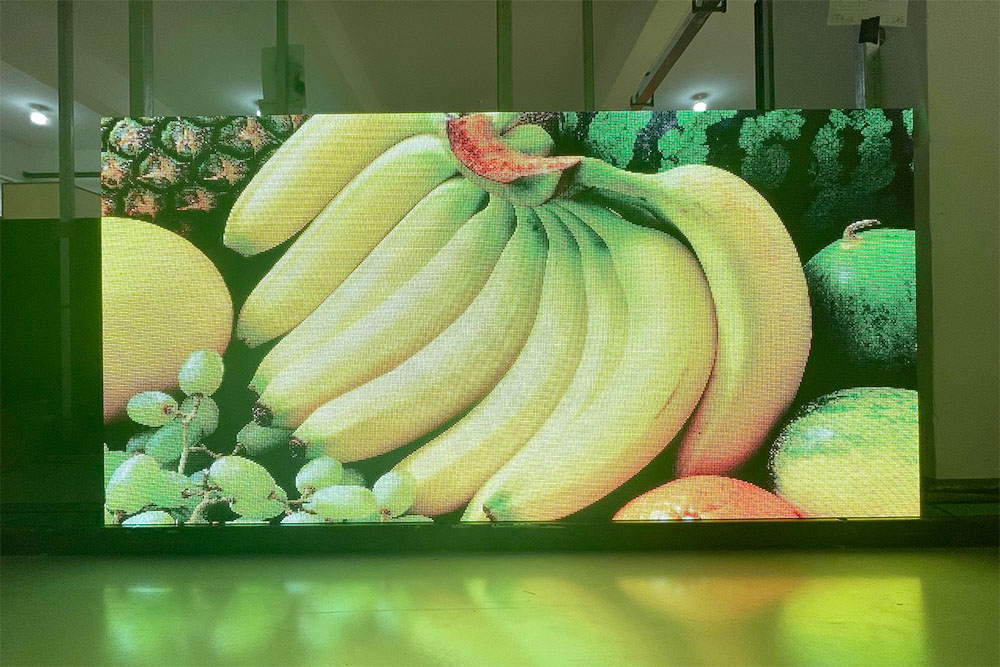

Outdoor LED signage is a high-visibility, weather-resistant display solution used to broadcast messages, advertisements, and information in outdoor environments. It’s widely utilized across industries — from retail and transportation to sports arenas, churches, and public infrastructure — due to its durability and brightness.
High Brightness
Designed to combat direct sunlight, outdoor LED displays often exceed 5,000–10,000 nits, ensuring content remains vibrant and readable in daylight.
Weatherproof Design
With IP65 or higher ratings, these signs are dust-proof and waterproof, making them reliable in rain, snow, heat, or wind.
Long Viewing Distance
Outdoor LED signs typically use larger pixel pitches (e.g., P4–P10) for optimal visibility from afar — ideal for highways, building facades, or stadiums.
Modular Structure
Cabinets can be spliced seamlessly into any shape or size — from standard billboards to custom installationslike curved or corner-mounted screens.
Energy Efficient
Advanced power supplies and smart brightness control ensure lower power consumption, especially for 24/7 usage.
Remote Content Management
Supports cloud-based and asynchronous control systems (e.g., NovaStar, Colorlight, Linsn) for real-time updates and scheduling.
Dynamic & engaging content (video, animations, real-time data)
Long lifespan (50,000+ hours with proper maintenance)
Scalable and customizable
24/7 visibility
Cost-effective over time compared to static print signage

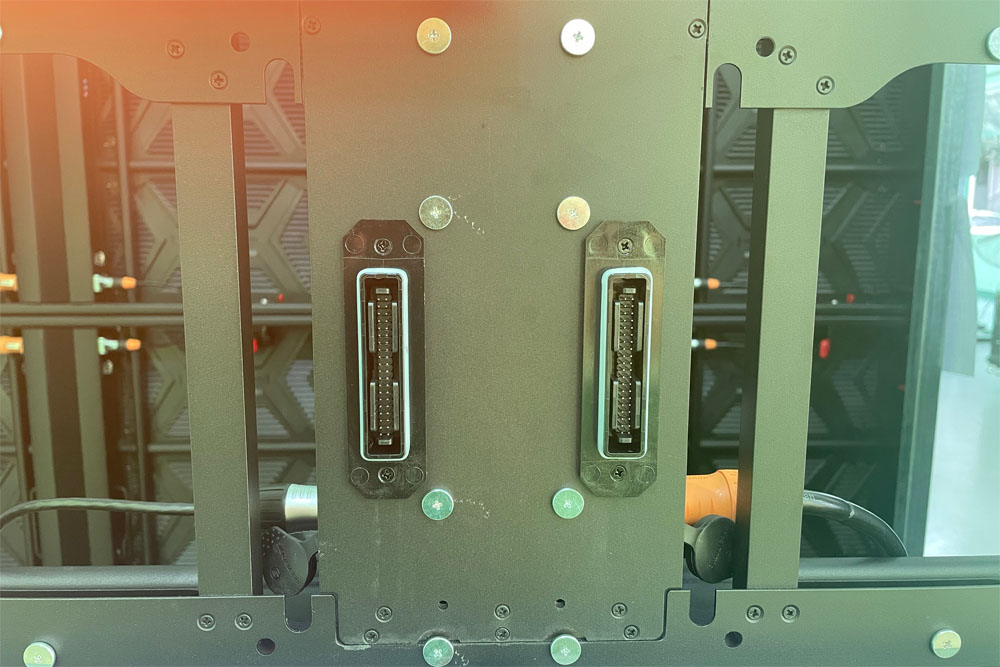

Front maintenance design has become increasingly popular in outdoor LED display installations due to space-saving, service efficiency, and flexible integration. Here’s a detailed breakdown of its key advantages:
No need for rear access: Ideal for wall-mounted or embedded displays, especially where back access is limited or impossible (e.g., on building facades, columns, or narrow alleys).
Enables closer-to-wall installation, reducing structural depth and construction costs.
Module, power supply, receiving card, and other internal components can be removed from the front sideusing magnetic tools or screw mechanisms.
Greatly reduces repair time and labor cost, as there’s no need to dismantle the entire screen or access the back.
Safer maintenance in high or hard-to-reach installations — no scaffolding or dangerous rear access required.
Technicians can replace modules directly from the front, improving safety, especially in roadside or high-altitude locations.
Still maintains IP65-rated waterproof and dustproof protection, even with front access design.
High durability and robust sealing ensure long-term stable performance outdoors.
Front maintenance modules support tight integration into architectural facades, offering a streamlined look with no need for bulky back access channels.
Outdoor building-mounted billboards
Street-side LED signage
Church or school message boards with wall-mount installations
Bus stations, retail signs, and other urban fixed installations
Seetronic plugs are widely regarded as excellent for outdoor LED displays, especially in professional rental, staging, and fixed outdoor installations. Here’s why:
Seetronic plugs (especially their powerCON TRUE1-compatible or XLR-style connectors) offer high waterproof protection, making them reliable in rain, humidity, dust, and outdoor weather.
Ideal for permanent outdoor LED signage and temporary outdoor events.
Designed to handle power, DMX, and signal connections under heavy usage.
Secure locking mechanism ensures stable connection, critical for LED cabinets that vibrate or move (e.g., mobile stages).
Seetronic uses high-quality thermoplastics and copper alloy contacts, offering UV resistance, impact resistance, and long lifespan.
Great for rental LED screens, which face frequent disassembly and rough handling.
Fast-connect/quick-release designs help speed up installation and teardown.
Many plugs are UL/CE certified, ensuring safe operation even in challenging environments.
Compatible with Neutrik standards (like powerCON TRUE1, XLR 3/5-pin, etc.), so you can integrate seamlessly into most professional LED systems and controllers (like Novastar, Colorlight, Linsn setups).
Power connectors: SAC3MPA, SAC3FCA, or Seetronic TRUE1-compatible
Signal connectors: Seetronic XLR 3/5 pin waterproof or RJ45 waterproof Ethernet connectors
Seetronic plugs are a solid, cost-effective alternative to Neutrik for outdoor LED displays. They offer excellent waterproofing, durability, and performance — making them a smart choice for any permanent or rental outdoor LED setup.
